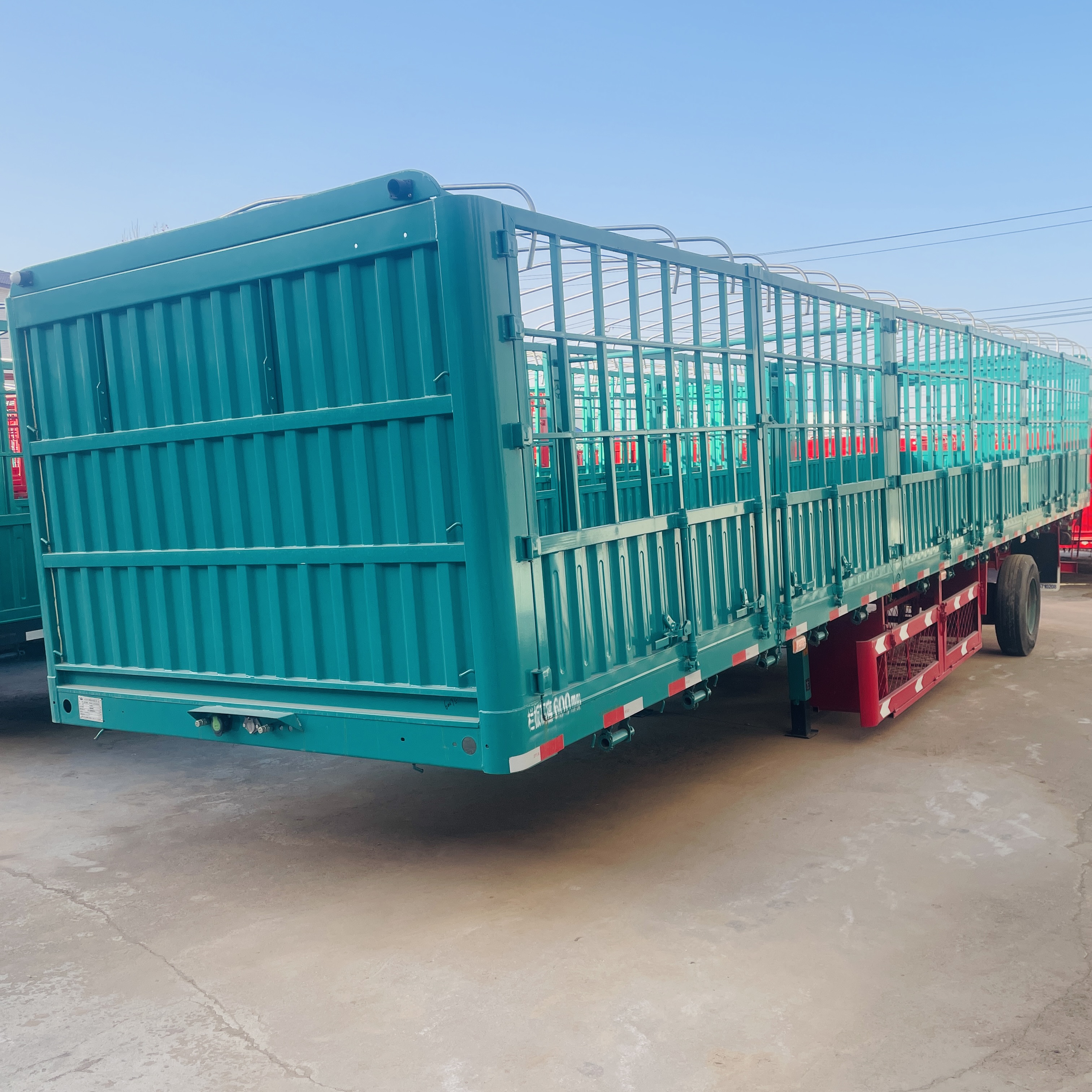

| Dimension | 13000/12500/12000/11500/11000/10500mm*2500mm*3050mm(1500mm sidewall high) |
| Load Capacity(T) | 60T/customizable |
| Axle | 2/3/4 axles, 13T/16T, FUWA/BPW Brand |
| Rim | 9.00-22.5 9.75-22.5(Specially designed and for oversea markets) |
| Tire | 12 units, 12.00R22.5/315 80R22.5(Specially designed and for oversea markets) |
| Suspension | Mechanical suspension,bogie suspension or air suspension(Specially designed for oversea markets) |

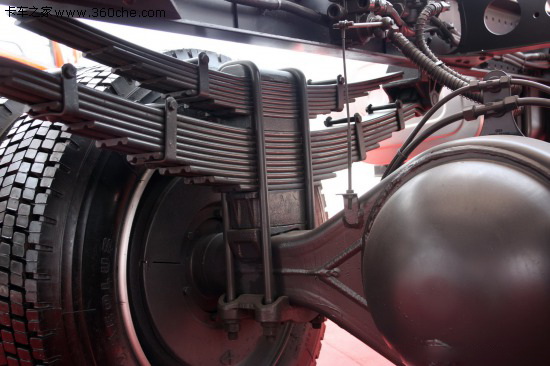

| Spring leaf | 90(W)mm*13(Thickness)mm*10Layer or 10mm*12mm*12Layers(Specially designed for oversea markets) |
| King pin | JOST brand 2.0 or 3.5inch(bolted or welded type) |
| Support leg | JOST brand D200T or Chinese brand 28Tons(Double speed) |
| Main beam | Height: 500mm , Q345/T700Upper Plate: 14mm Down Plate: 16mm Middle Plate: 8mm |
| Side beam | 16mm or 18mm steel channel(material: Q235steel) |
| Brake chamber | WABCO RE 6 relay valve: T30/30+T30 Spring brake chamber(TKL brand): 45L air tanks |
| ABS | Optional |
| Twist Locks | Four, Eight or Twelve pieces(lifting type or twist screw type) |
| Braking system | WABCO valve |
| Tool box | 1m*0.5m*0.5m(The tool box contains 1 tire spanner, 1 gudgeon sleeve and 1 cranking bar. Its size can be tailored to suit your needs) |
Simple structure, good shock absorption effect

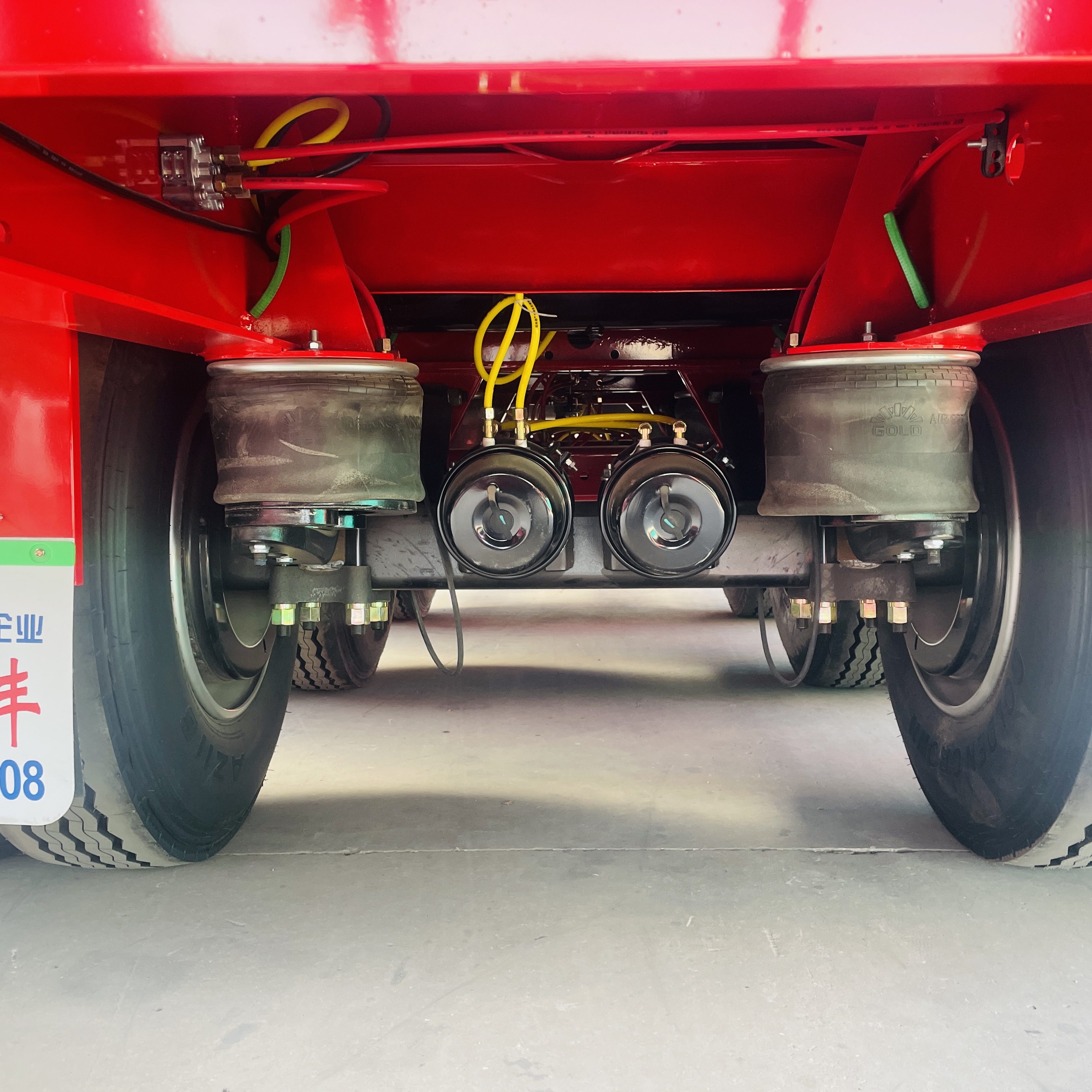

Optional air suspension, Specially designed and for oversea markets

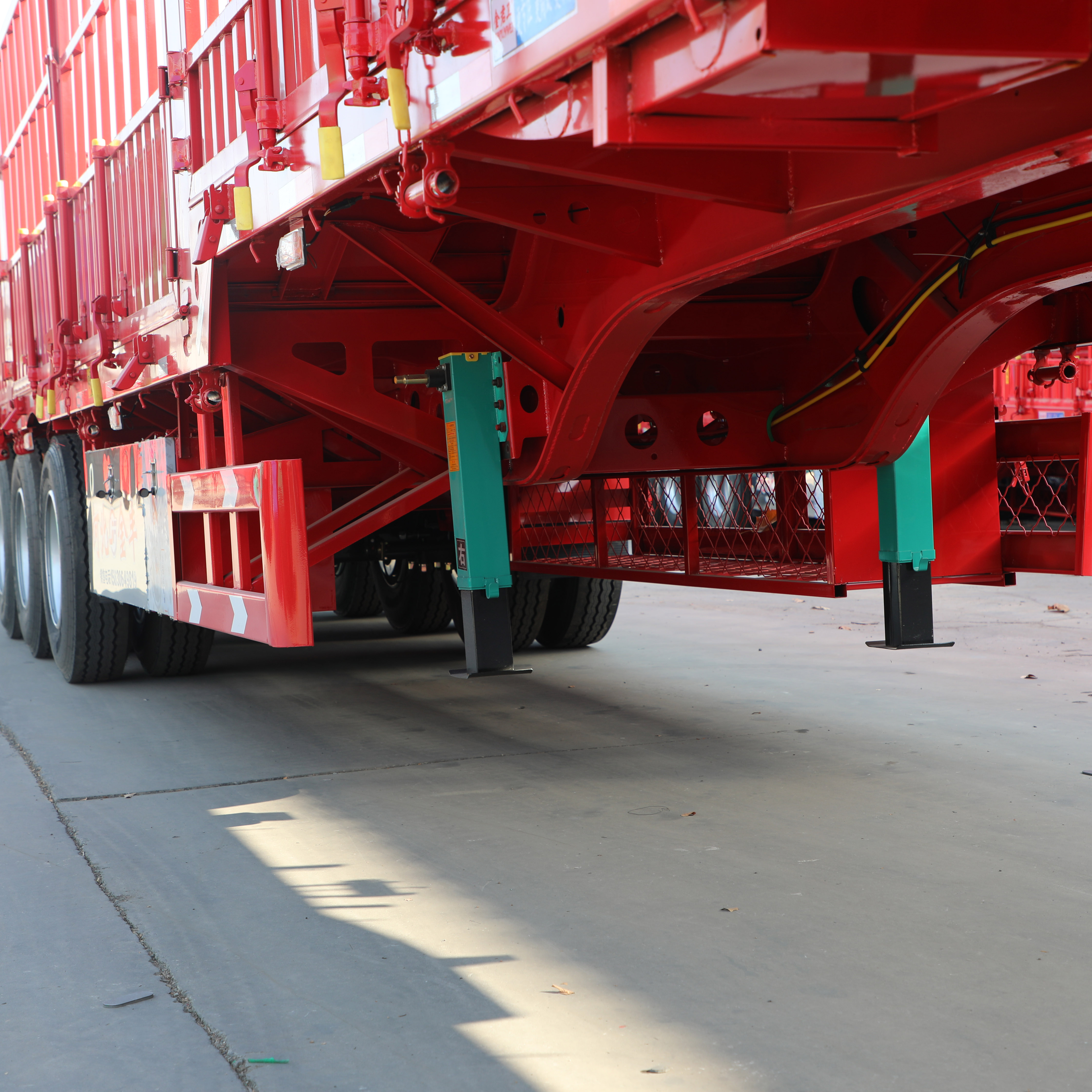

Optional mechanical landing gear and hydraulic automatic landing gear

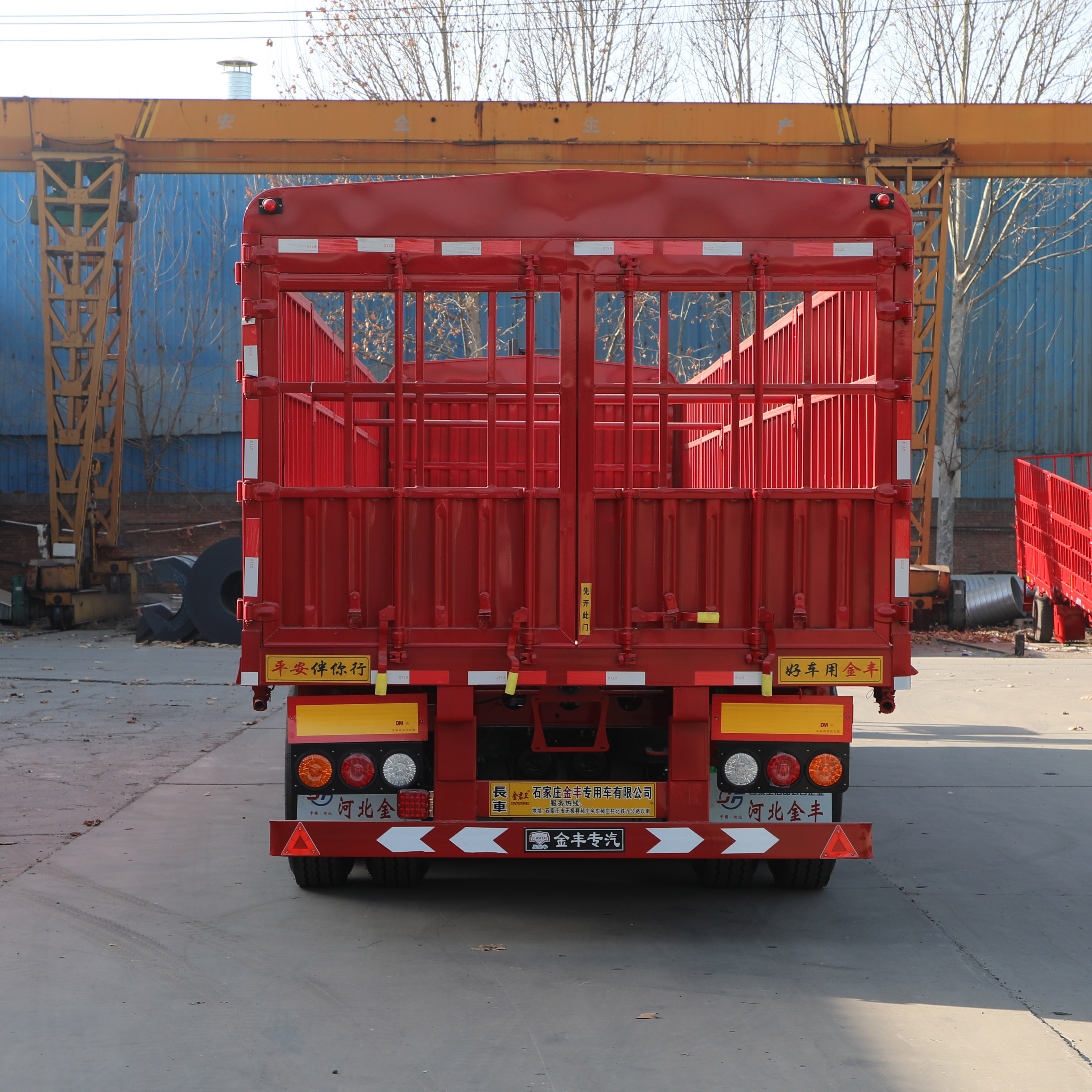

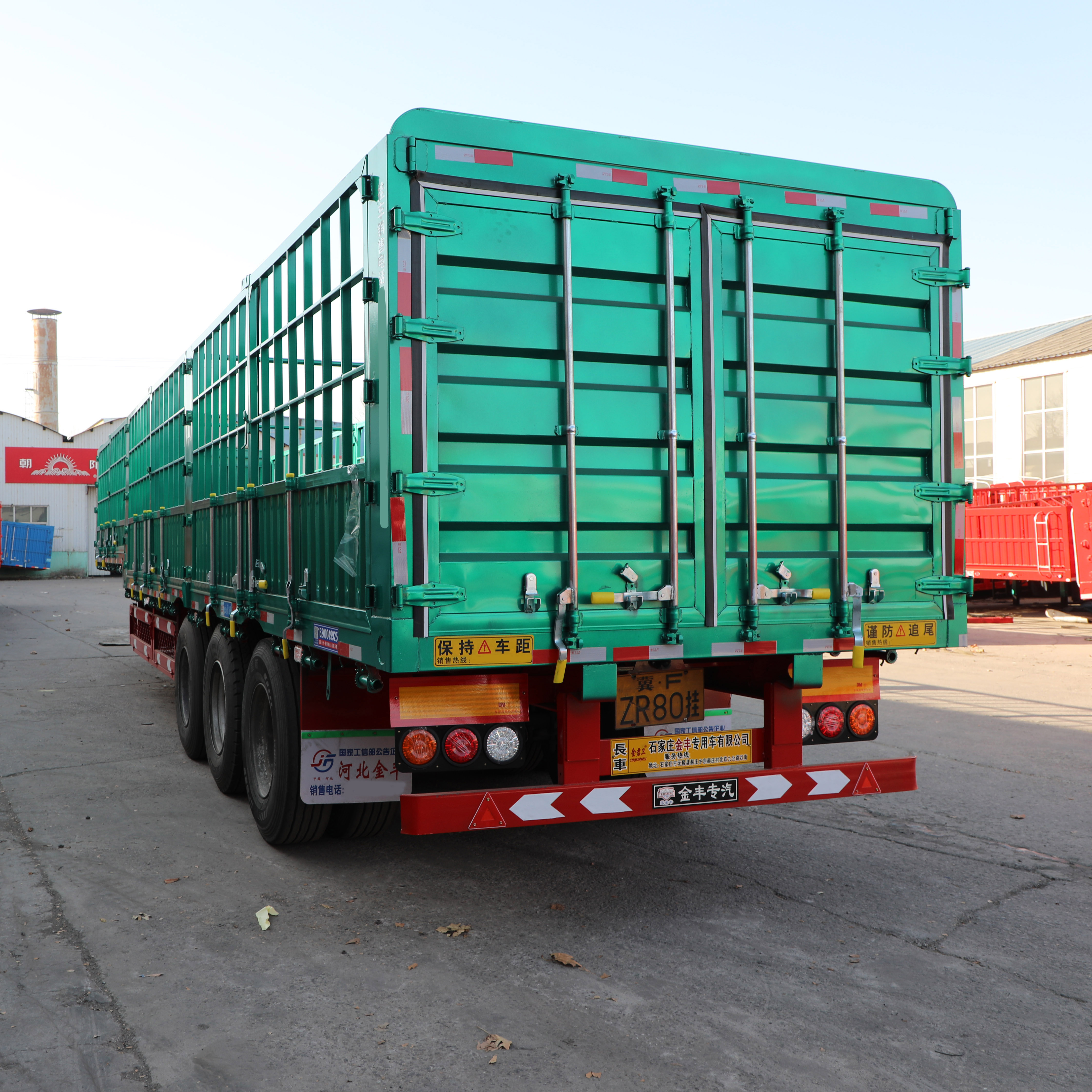

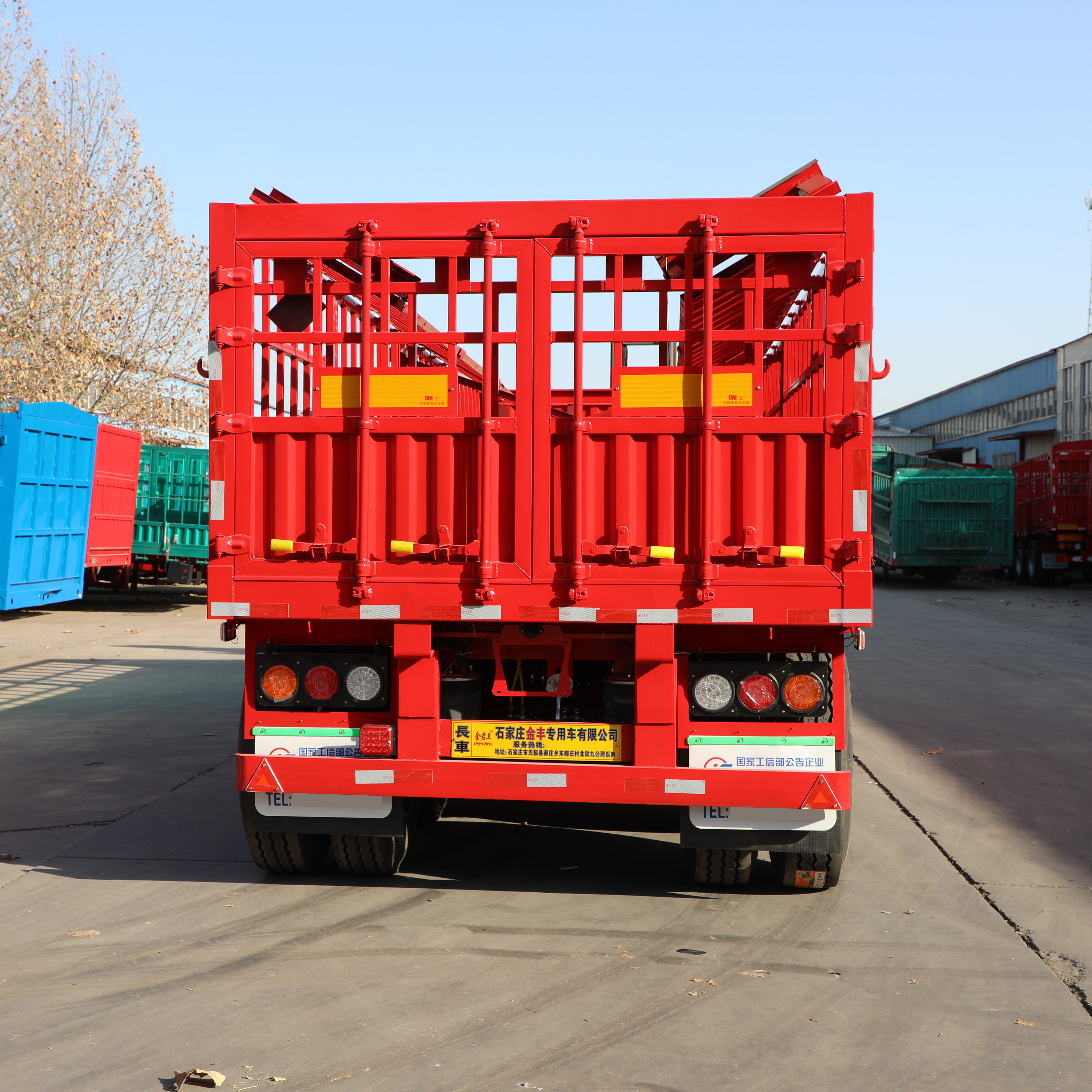

Highlight the rear taillights to improve nighttime driving safety

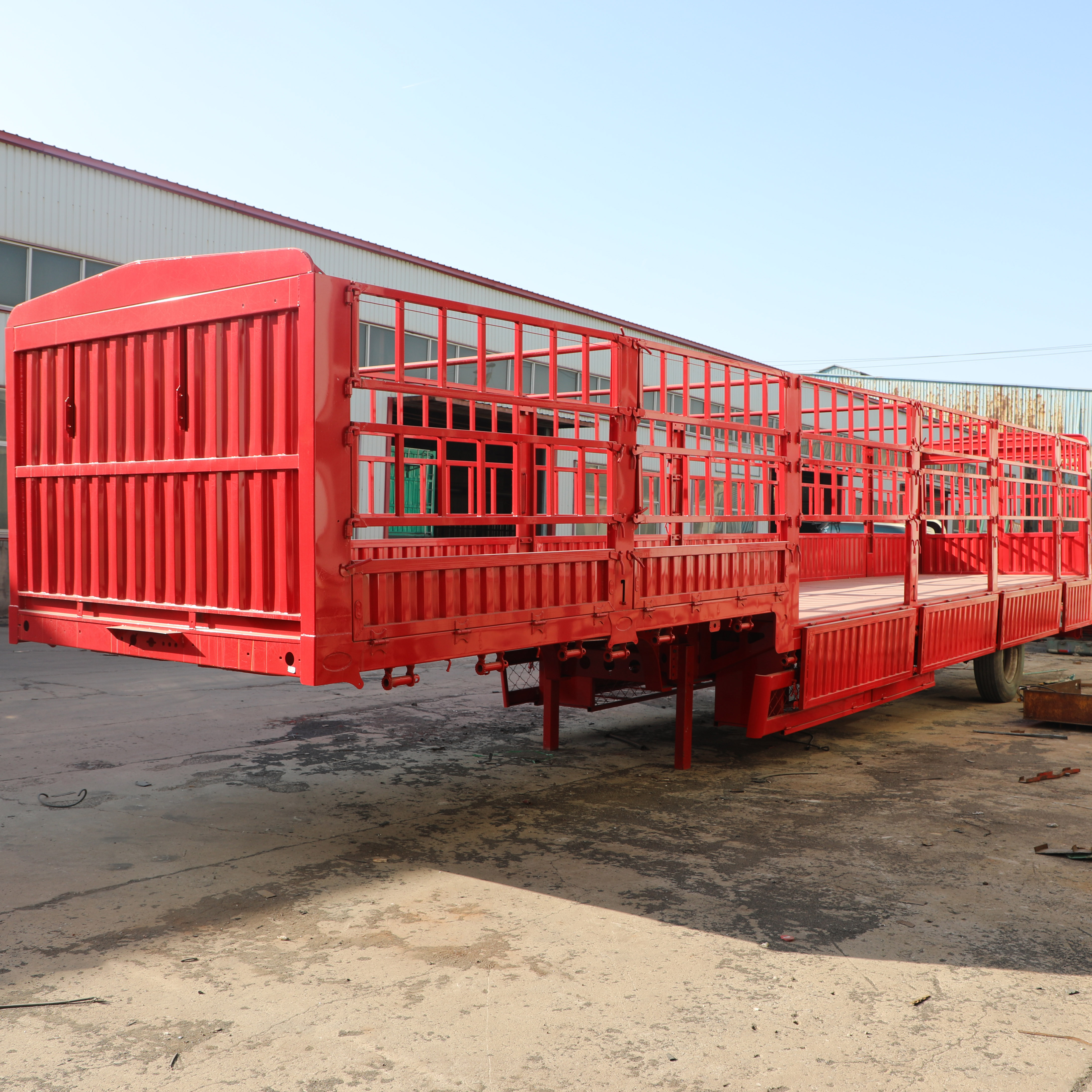

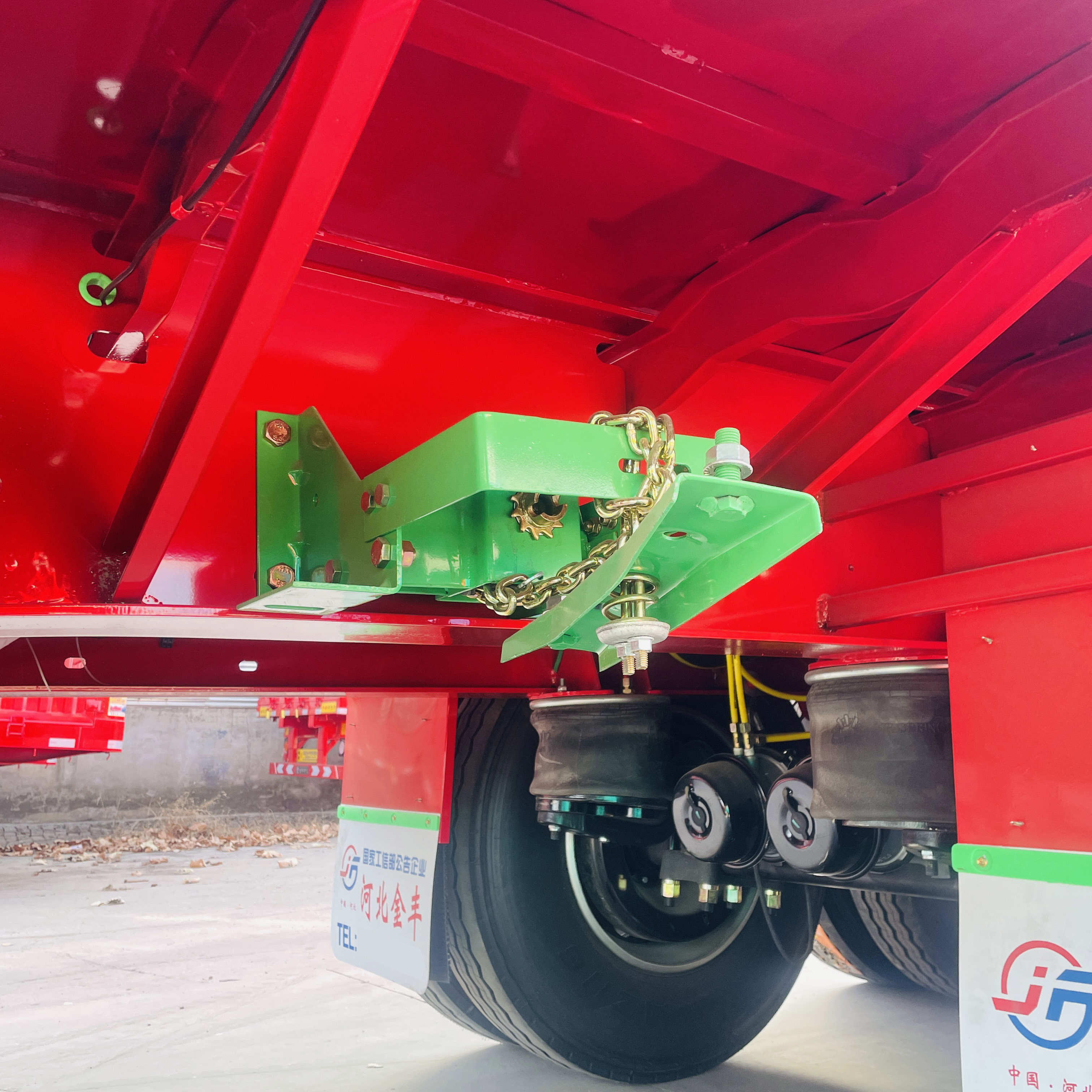

High strength chain is firmly fixed and easy to use

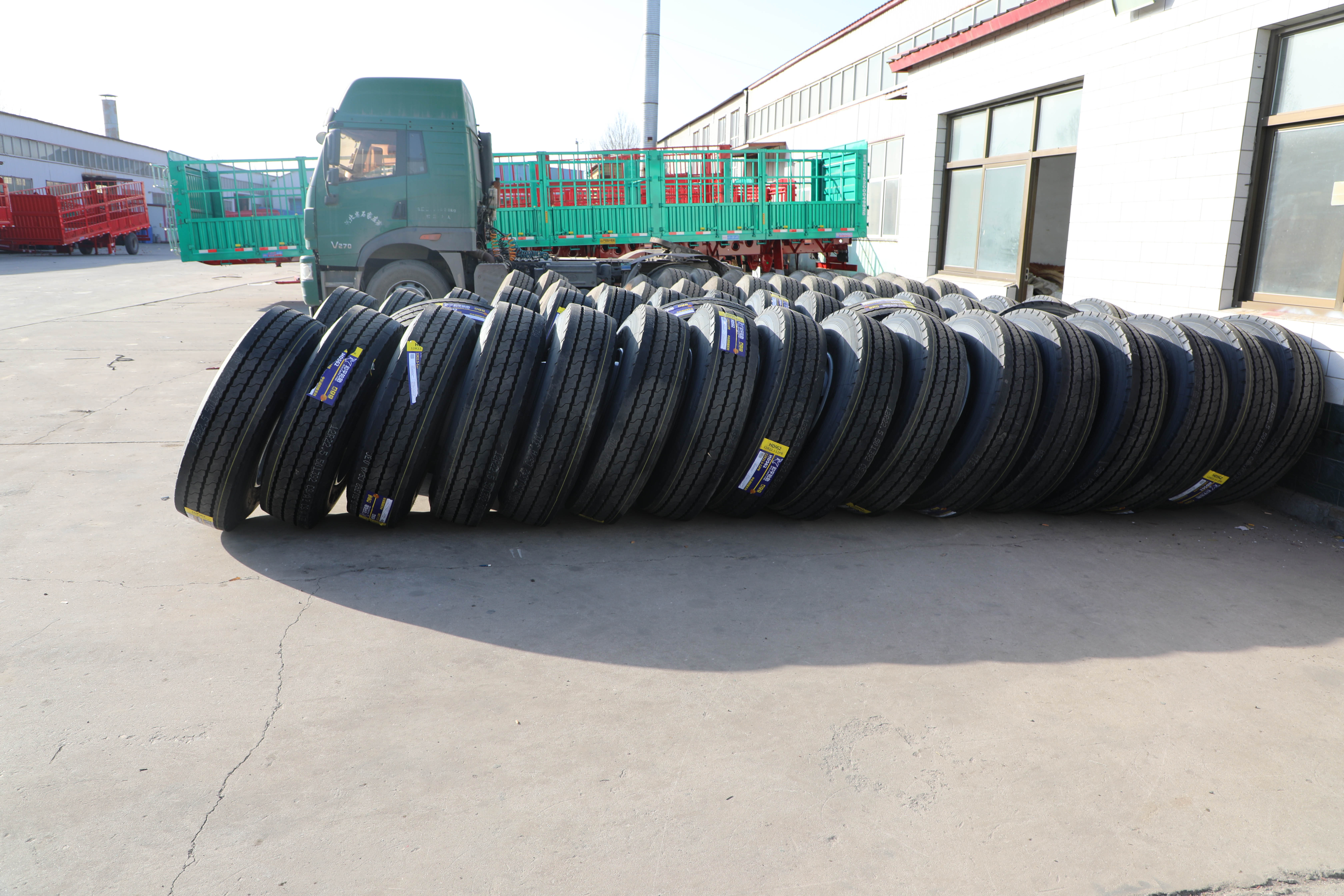

Different specifications of tires can be optionally installed to meet the needs of different scenarios

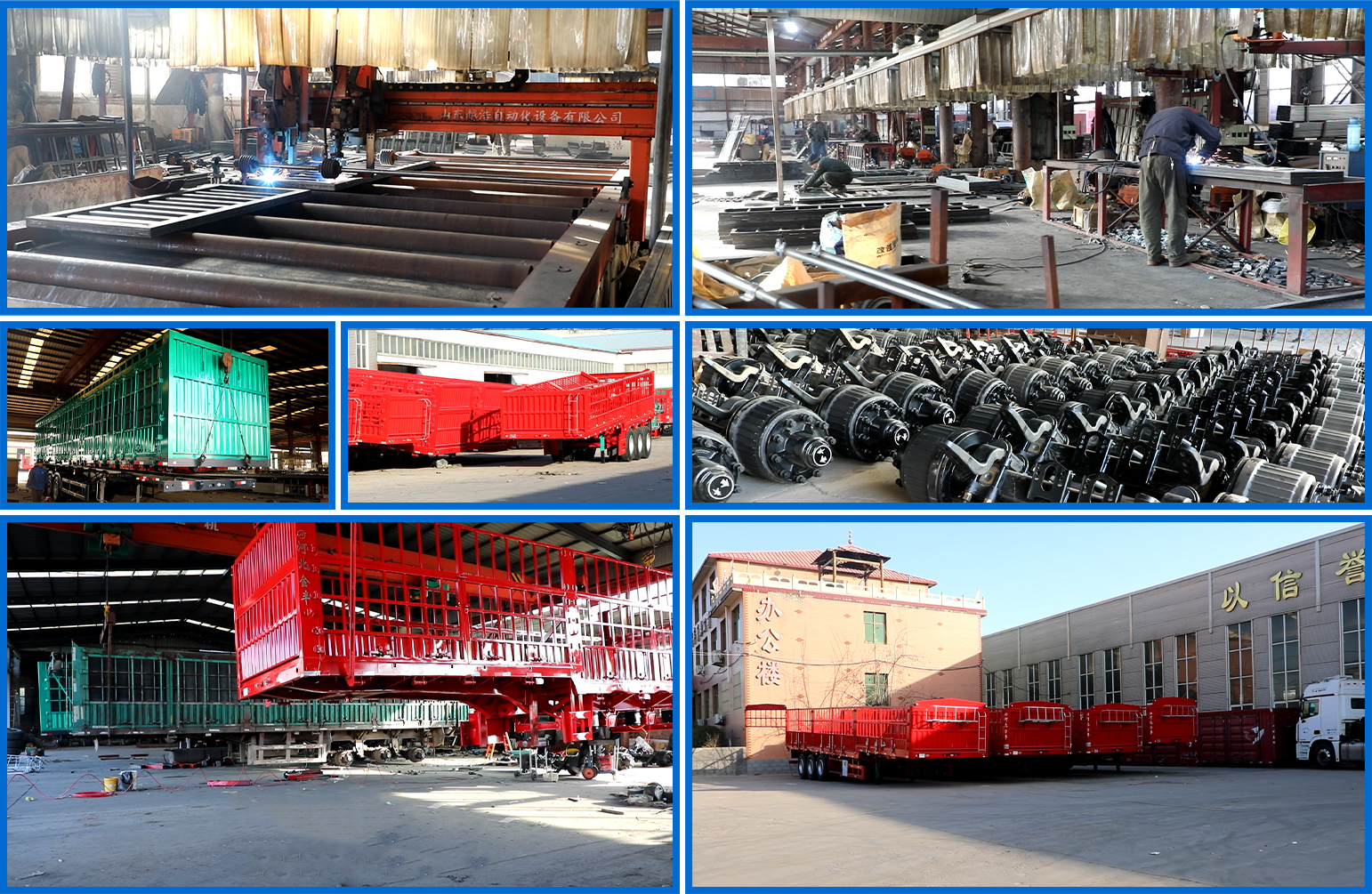

Longyang Weiye Hengshui Technology Co., Ltd. is a modern technology-based enterprise that has formed a strong alliance with Shijiazhuang Jinfeng Special Vehicle Co., Ltd. to achieve research and development, manufacturing, sales, and after-sales service. The factory was established in 2007 and is located in Shijiazhuang, the capital of Hebei Province, China, with convenient transportation. The factory covers an area of over 200000 square meters and has over 500 employees. It is equipped with top-notch CNC cutting machines, automatic welding machines, large binding machines, large vehicle passing sandblasting machines, ultra large painting and drying workshops, as well as over 400 sets of various production and testing equipment, advanced production lines, and modern assembly equipment. The annual output is about 40000 units. And it has passed CCC and ISO9001:2000 certification. We specialize in production Flatbed Semi Trailer, Low Bed Semi Trailer, Fence Semi Trailer, Skeleton Semi Trailer, Side Wall Semi Trailer, Van Semi Trailer, Side Dump Trailer, Rear Dump Trailer and various truck trailer accessories. Longyang Weiye&Jinfeng will sincerely cooperate with friends from all over the world with excellent products and perfect services, and develop together. We warmly welcome new and old customers to visit and discuss cooperation. We will do our best to provide you with services and work together to create brilliance!
Experience in export services from over 70 countries, understanding the differences in different markets.
Passed CCC and ISO9001:2000 certification.
