Hydraulic Actuation
Direct supply, verified cross-referencing, and structural inspection backed by Bursa automotive procurement infrastructure and advanced China foundry capabilities. Inspect 8 core heavy-duty assemblies engineered to ISO/TS 16949 and IATF 16949:2016 tolerances.
Commercial vehicle disc brake calipers operate under severe thermal cyclic loads reaching 750°C disc face interfaces with clamping forces surpassing 130 kN. Sourcing reliable calipers requires deep insight into ductile iron microstructure, sliding pin mechanism friction coefficients, and internal pressure seal integrity.
The structural bridge and housing of heavy-duty air disc brake (ADB) calipers undergo extreme cyclic tension during hard emergency braking. High-performance Chinese manufacturing incorporates electric induction melting and automated DISA green sand moulding lines.
By enforcing a minimum nodularity of 85% and fine-grain pearlite-ferrite matrices, brittle fracture risks under cold alpine operating conditions (-40°C) are eliminated while stopping caliper body flexing.
Floating caliper slide assemblies are the leading failure point in fleet operations. Road salt, water ingress, and high temperatures degrade sliding guide sleeves, causing uneven pad taper wear, brake drag, and elevated fuel consumption.
Premium export units incorporate micro-finished sliding pins coated in hard chrome or zinc-nickel alloys, matched with high-grade fluoro-elastomer (FKM) or chloroprene (CR) bellows able to survive over 250°C radiant disc heat.
Heavy pneumatic calipers (e.g., Knorr SN7/SK7, Meritor Elsa, Haldex ModulT, and Wabco PAN types) depend on synchronized internal gear mechanisms and torque-limiting clutches to maintain a stable 0.6–1.2 mm running clearance.
Every caliper exported through our network undergoes automated dyno-testing measuring clearance take-up rates, stroke-displacement curves, and mechanical efficiency thresholds exceeding 88% throughout pad lifecycle.
| Caliper Family Series | Actuation / Piston Config | Target Disc Diameter | Typical Heavy Duty Application | Cross-Reference Compatibility |
|---|---|---|---|---|
| Type SN7 / SK7 Series | Twin Tappet Pneumatic | Ø430 mm × 45 mm | Mercedes Actros MP4, MAN TGX, Scania R | K000914, K001928, II36081, 0044206083 |
| Type PAN 19-1 / 22-1 Series | Single Large Bore Piston | Ø377 mm – Ø430 mm | DAF XF105, Renault Magnum, Volvo FH16 | 6402220170, 5001859664, 20466038 |
| Type Elsa 225 / Radial Series | Twin Direct Thrust Mechanical | Ø430 mm × 45 mm | Volvo FM9/FH12, Renault Kerax, Bus Chassis | MCK1139, MCK1140, 20568711, 85103833 |
| Type ModulT Compact Series | Single Tappet Lightweight | Ø370 mm – Ø430 mm | SAF-Holland Axles, BPW ECO Disc, Schmitz | 901324001, 0536270020, 1101905 |
| Hydraulic Light/Medium CV Series | Dual/Quad Opposed Piston | Ø300 mm – Ø355 mm | Iveco Daily, Ford Cargo, Isuzu Forward, Fuso | 42536630, 504120858, 8-97143-428-0 |
Procurement directors and commercial aftermarket category managers are moving away from spot purchases toward resilient, transparent partnerships. Three core industry dynamics dominate global caliper trade over the next decade.
For decades, Western European and North American markets relied heavily on remanufactured calipers. However, escalating return freight expenses, high labor costs in core triage, and micro-cracks in 15-year-old donor castings have shifted commercial economics.
China's highly automated casting and multi-axis CNC machining centers have made 100% brand-new calipers cost-competitive with reman units while eliminating the core-deposit tracking headache and guarantee risks for distributors.
As battery-electric commercial vehicles (BEVs) and hydrogen heavy haulers scale, conventional engine-driven pneumatic air compressors are being phased out or downsized. Caliper engineering is pivoting rapidly toward 24V Electro-Mechanical Braking (EMB).
Procurement managers must select tier-1 suppliers investing in smart actuator motor integration, electronic pad wear sensors, and digital CAN-bus communication capabilities directly on the caliper assembly.
Recent supply chain volatility and geopolitical shifts make single-corridor dependence high risk. Savvy international importers are leveraging hybrid sourcing models: massive scale and cost containment via direct China foundries, coupled with the strategic agility of Türkiye's industrial basin.
Under the EU-Türkiye Customs Union, shipments supported by A.TR Movement Certificates enjoy simplified customs clearance and zero tariff burdens across European Union member states.
Modern fleet operations demand longer maintenance cycles, reduced un-sprung weight for maximum payload, and zero brake noise emissions. Leading Chinese manufacturing operations are executing critical technological transitions.
Using finite element analysis (FEA), new-generation caliper bodies remove parasitic iron mass from low-stress zones while strengthening high-strain bridge perimeters. Modern designs cut caliper assembly weight by up to 12% without sacrificing clamping rigidity or brake pedal feel.
Traditional hexavalent chromium surface treatments have been replaced by waterborne zinc-flake and ceramic non-electrolytic dip-spin coatings (such as Geomet and Dacromet). These coatings deliver over 1,000 hours of neutral salt spray resistance against chemical winter de-icers.
Urban transit buses and long-haul sleeper cabs require near-silent braking. Caliper R&D incorporates asymmetric piston designs, multi-layer stainless steel pad retention shims, and elastomeric vibration isolators that prevent harmonic brake squeal and rotor scoring.
Modern production facilities run 100% computerized helium or dry differential air pressure testing on every caliper assembly. Calipers must prove zero leak decay at both micro-pressures (0.5 bar for boot integrity) and working pressures (> 150 bar for hydraulic, > 12 bar for pneumatic).
Combining Bursa's proven export desk infrastructure with high-volume Chinese manufacturing operations, our platform bridges the gap between Asian foundry scale and European trade quality.
Strategically headquartered in Nilüfer, Bursa — the heart of Türkiye's commercial automotive industry — our direct operational desk bridges international buyers with regional manufacturing and Asian production pipelines with exceptional efficiency.
We eliminate expensive wrong-part deliveries. Our proprietary technical cross-referencing system cross-checks OEM numbers, KNB codes, casting numbers, and critical dimensions (thread pitch, port Voss sizes, and mounting bore centerlines).
Complex engineering drawings, technical specifications, and export customs paperwork are handled seamlessly in 4 primary trade languages: English, Turkish, German, and French, ensuring clear commercial alignment.
Led by Burak Azman, our team brings nearly ten years of dedicated logistics, supply-chain coordination, and export compliance expertise to every container order, guaranteeing transparent documentation and on-time international delivery.
Every commercial invoice, packing list, Certificate of Origin, and EUR.1 or A.TR movement certificate is verified by our in-house trade specialists, guaranteeing duty-free access and smooth import processing across global customs zones.

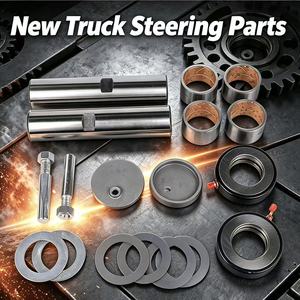

Avoid high LCL logistics fees. We consolidate brake calipers, air suspension springs, brake chambers, air dryer units, king pin kits, and steering parts into single full-container loads (FCL) managed under one Bill of Lading.
We provide full white-label and customized branded packaging, laser-etched batch coding, QR-code cataloging, and corrosion-resistant VCI protective wraps tailored for major regional automotive distributors.
Before cargo release, independent CMM dimensional verification, material spectrometry inspections, and pneumatic burst-pressure testing certificates are supplied directly to your QA procurement division.
Clear, technical answers to critical engineering, minimum order, logistics, and quality assurance questions commonly asked by international automotive importers.
Send your bill of materials, OEM part numbers, casting stamps, or technical drawings. Our experienced export engineering team will verify cross-references and return a detailed commercial quotation within 24 hours.
